CAS4/4+ BDM WIRING

  1. Unplug CAS from the car (Located under driver side trim panel for pedal mechanism. Careless Removal of the module may cause a damage to the car or the control itself, it must be carried under user's RISK)
  2. Remove CAS board from the casing

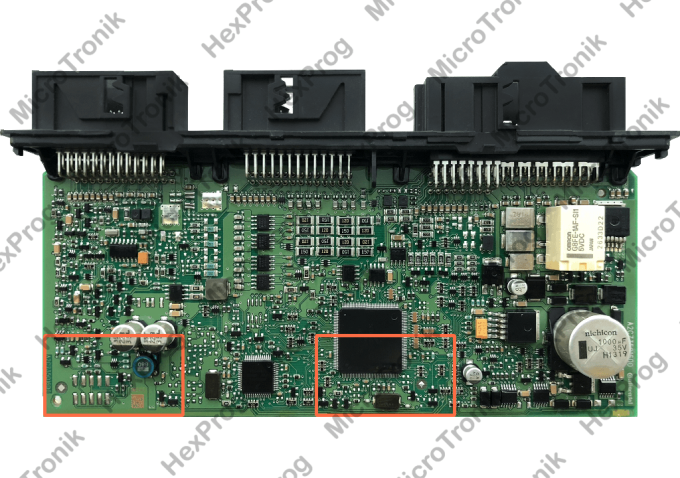

    3. CAS4/4+
    CAS4/4+
  3. Solder wires to CAS based on the below connection diagram using BDM cable
    4. CAS4/4+ Wiring
    CAS4/4+ Wiring
  4. Select the CAS/CPU version from HexProg software
  5. Do the necessary operations on software
  6. Unsolder wires
  7. Connect CAS back to car
Last Update: 12/18/2018
